Clear Polycarbonate Threaded Post & Screw
Related Products
Clear polycarbonate fastener sets consist of a female-threaded post and a slotted-head 8/32 thread cap screw. Also referred to as Binding Posts or Chicago Screws, typical uses include binding rigid or flexible plastic, leather, swatch book fabric & paper, key cases, etc.
When installing binding posts, we recommend drilling a ¼” diameter hole, then installing the post and screw, using gentle pressure to avoid stripping thread.
All Dimensions are appropriate
*Assuming two full turns on threads
When installing binding posts, we recommend drilling a ¼” diameter hole, then installing the post and screw, using gentle pressure to avoid stripping thread.

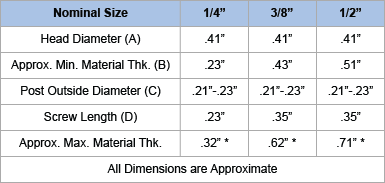

Nominal Size
|
Width
|
Height
|
Holes
|
| Head Diameter (A) | .41"
|
.41"
|
.41"
|
Approx. Min. Material Thk (B)
|
.23"
|
.43"
| .51"
|
Post Outside Diameter (C)
|
.21-.23"
|
.21-.23"
| .21-.23"
|
Screw Length (D)
|
.23"
|
.35"
| .35"
|
Approx. Max. Material Thk
|
.32"*
|
.62"*
| .71"* |
*Assuming two full turns on threads
