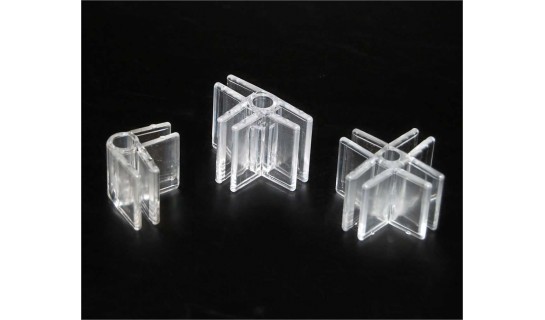

Lexan Clip System 3/16"-Sheet Connectors


Lexan Clip System. These durable connectors are made from Lexan and are often used for displays, organizers, or shelving. Great to use in modular or portable displays, e.g., trade shows or street fairs.

Clips accept 3/16" plastic, glass or other material.

  • Material slides into clip 1/2”
  • Clip system normally results in a 1/2” gap between pieces (this can be reduced to ~1/8”)*
  • Minimum two clips per side are recommended for proper stability/alignment
  • Maximum recommended distance between clips: 12”
Dimensions:
Clip Type
2 Way
3 Way
4 Way
Use For

Corners of Display
Flat Side w/ Dividers
Center of Display

*Note: These clips provide a very snug fit and will mar the surface of plastic they clip onto.
Notching the edges of the plastic pieces these clip onto is optional, but serves two purposes:
§ the gap between pieces of material is reduced from 1/2” to 1/8”
§ notches provide convenient “reference marks”, ensuring that the marred area will be hidden under the clips

For pricing on notching or edge finishing, contact your local TAP Retail store or Web sales.

4 way clip system assembled. Acrylic shown with optional polished edges.



3 way clip shown partially assembled (without notches). Acrylic pieces shown w/optional polished edges - labor charge would apply.


3-way clip. Acrylic pieces shown with optional notches and polished edges - labor charge would apply.


3 way clip shown partially assembled (with notches). Note reduced gap between pieces. Acrylic pieces shown w/optional polished edges.


3 way clip system assembled. Acrylic shown with optional polished edges.


2 way clip system assembled. Acrylic shown with optional polished edges.



Personal Protection Equipment

Make dividers and barriers using Lexan Clips and 3/16" cut to size acrylic. You will need two clips for each join. Maximum panel length is 48" Maximum panel height is 24". Corners can be rounded upon request. Panels may be cleaned with a diluted bleach solution.

To order the correct size acrylic for table dividers, measure the distance needed subtract 1/2" for the clip then divide that number in half.

This sneeze guard is made using a 24" x 40" panel of 3/16" clear acrylic and four 3-way lexan clips. There are four side pieces, 40" x 2" each, two rear and two front, to ensure the guard will not tip over.
