Hypo-Type Solvent Cement Applicators


Low Density Polyethylene Bottle Applicator
(BD-25/2, BD-49/2)

“Easy-squeeze” polyethylene bottles feature stainless-steel needles for capillary cementing of plastic sheets. Dust-proof plastic caps protect the blunt needles when not in use. Do not leave solvent cement in applicator for an extended period.



Syringe Hypodermic Applicator (SY20-65)
Removable, stainless-steel hypodermic needle is attached to a heavy-duty, rigid polypropylene chamber. The blunt needle end is protected with the included plastic, dust-proof cap when not in use. Do not leave solvent cement in applicator for an extended period.

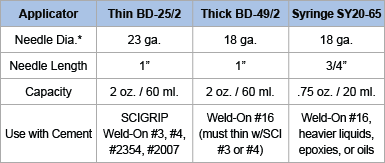

Applicator
Thin BD-25/2
Thick BD-49/2
Syringe SY20-65
Needle Dia.*
23 ga.
18 ga.
18 ga.
Needle Length
1"
1"
3/4"
Capacity
2 oz./ 60ml.
2 oz./ 60ml.
.75 oz. / 20 ml.
Use with Cement
SCIGRIP Weld-On #3, #4, #2354, #2007
Weld-On #16 (must thin w/SCI #3 or #4)
Weld-On #16, heavier liquids, epoxies, or oils
*Larger gauge needle sizes are actually smaller in diameter.

Click here for Plastic Sheets Care/Cementing Product Bulletin.

TAP Video: How to fabricate a plastic box
