Acrylic Clear OP-3 Ultraviolet (UV) Filtering

Enter Specifications
Color
Unit
Thickness
inches
Width
inches
Length
inches
Quantity
sheets
Choose Options
$1 per lineal foot
For gluing
$1 per lineal foot
Minimum length 6" Minimum length 155 mm
$1.25 per lineal
$4.10 per lineal
NOT AVAILABLE FOR THIS ITEM
$5 / pc | 4 corners
inches
$2 per hole
holes
per sheet
Available hole sizes:
1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16, 5/8”, 11/16”, 3/4", 13/16”, 7/8”, 15/16”, and 1”.
After placing your order you will receive an email with instructions for sending us hole sizes and their locations.

Cut to size orders are cut with table and CNC panel saws and have a cut tolerance of +/- .060”. Plastic sheets have a thickness tolerance of +/- 10% and can have thickness variations throughout the sheet. Cut to size items cannot be returned for a refund or exchange.

Sheet sizes, colors, thicknesses and products available on our website are just a fraction of what's available at TAP Plastics stores.

Cut to size orders are currently taking 1 to 2 days (M-F) to process.

Visit your local TAP Plastics store where cut-to-size orders often take less than five minutes, start to finish.

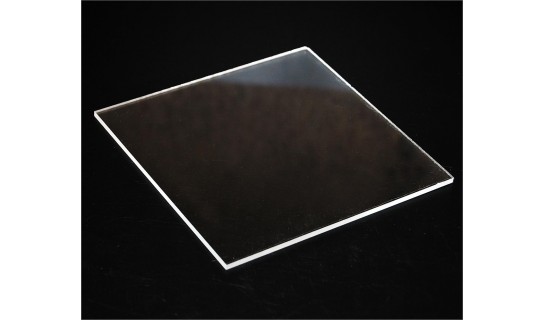

Acrylite OP-3 is designed to meet the unique needs of picture framers, museums, and artists. OP-3 protects artwork and documents from harmful ultraviolet light (UV), which is the primary cause of fading and degradation. Since OP-3 is acrylic, it is more evident and more impact resistant than glass and fabricates with the ease of acrylic. OP-3 is available with an abrasion resistant surface on one side (AR1). It is ideal for high traffic areas.

Sources of UV Light

Sunlight naturally emits UV light, which Acrylite OP-3 is made to filter. About 6% of sunlight is UV energy ranging between 320 and 380 nm. UV light is also emitted by artificial lighting including halogen and fluorescent lighting.

The following graph shows the light transmission properties of Acrylite Clear OP-3 UV filtering sheets, general purpose acrylic plexiglass, and gloat glass. While general purpose plexiglass and float glass filter out only a small amount of UV light, Acrylite OP-3 filters out approximately 98% of UV light. A further shift of the ACRYLITE® UV filtering sheet curve to the right would cause absorption of blue visible light and cause a yellowish appearance of the framed object.
