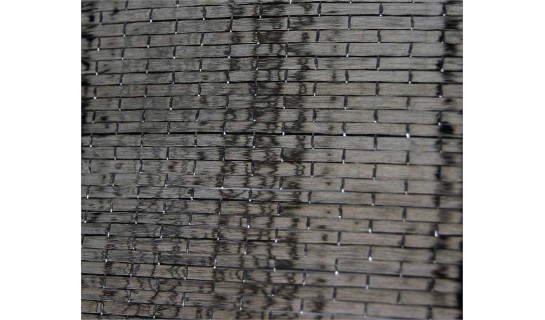

Unidirectional Carbon Fiber Fabric


Unidirectional Graphite GA045 & GA090
Carbon fiber provides exceptional stiffness with an excellent strength-to-weight ratio. Unidirectional fibers allow the user to orient the stiffness along the direction of the fiber for maximum strength. The fabric is formed from tows of fibers similar to that used in making woven fabric. It is compatible with epoxy, and vinyl-ester resins. Sold by the yard.

GA045
• Wt: 4.4 oz/sq yd
• Thickness: .0067"
• Tow: 6K
• Roll size: 150 yd

GA090
• Wt: 8.9 oz/sq yd
• Thickness: .0125"
• Tow: 12K
• Roll size: 150 yd

Material will be shipped as one continuous length.
Click here for Fiberglass Fabrics Data Sheet.

Click here for GA045 Unidirectional Carbon.
Click here for GA090 Unidirectional Carbon.
