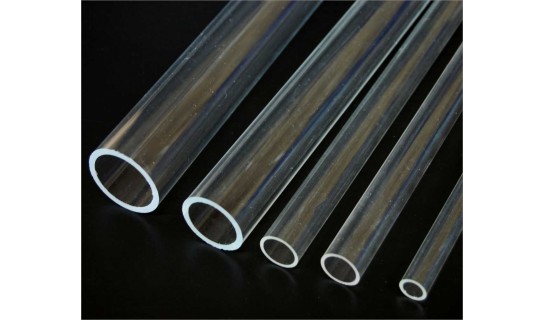

Clear Acrylic Tubes


Our Clear Acrylic Tubing has many uses for industrial and commercial projects — and with affordable pricing, you can purchase it for DIY work around the home, too. It’s made of extruded acrylic that has excellent impact resistance, weather resistance and optical clarity. The lower heat distortion point also makes it easier to cut and thermoform than cast acrylic. We should note that extruded clear plastic tubes do not machine and polish as well.

Do More with DIY Acrylic Tubing

This clear plastic tube is common for reinforcing and decorative work, but has many more possibilities. You can use plexiglass clear tubing for garden irrigation tubes, marine bilge and drainage pumps, support frames, vent ducting, protective steel pipe sleeves and much more. We offer it in a variety of diameters and wall thicknesses so you have the strength and flow each project requires. Consult the table below to see all our options and use the drop-down menus to make a selection.

Our standard plexiglass tube orders are cut in three-foot or six-foot lengths. However, custom clear acrylic tube lengths are available. Just choose “Other” in the Length menu and provide the measurement using the Comments form as you check out. Call us at 888-827-7330 or visit a TAP Plastics store if you have a question for our plastic experts.

Acrylic Clear Tubing Measurements

Outside Diameter

Tolerance +/-

  Inside Diameter

Wall thickness

1/4"

.010"

1/8"

1/16"

3/8"

.010"

1/4"

1/16"

1/2"

.010"

3/8"

1/16"

5/8"

.010"

1/2"

1/16"

3/4"

.010"

5/8"

1/16"

  1"

.010"

7/8"

1/16"

1-1/4"

.015"

1"

1/8"

1-1/2"

.015"

1-1/4"

1/8"

1-3/4"

.015"

1-1/2"

1/8"

2"

.015"

1-3/4"

1/8"

2-1/4"

.015"

2"

1/8"

2-1/2"

.020"

2-1/4"

1/8"

2-3/4"

.020"

2-1/2"

1/8"

3"

.020"

2-3/4"

1/8"

4"

.030"

3-3/4"

1/8"

5"

.040"

4-3/4"

1/8"

6"

.050"

5-3/4"

1/8"

4"

.050"

3-1/2"

1/4"


NOTE: If "6 foot length" is selected, an additional overside shipping/handling charge will be added to your invoice. If specific lengths are needed, please make a notation in the Comments/Instructions form on the checkout page.

If “Other” is selected from the length drop-down for cutting, a labor charge may apply. We will contact you with pricing after we receive your order.

UPS Oversize Fee: UPS applies the fee to any package exceeding 48 inches, however, they require a minimum of two inches around the product to reduce any possible damages.
